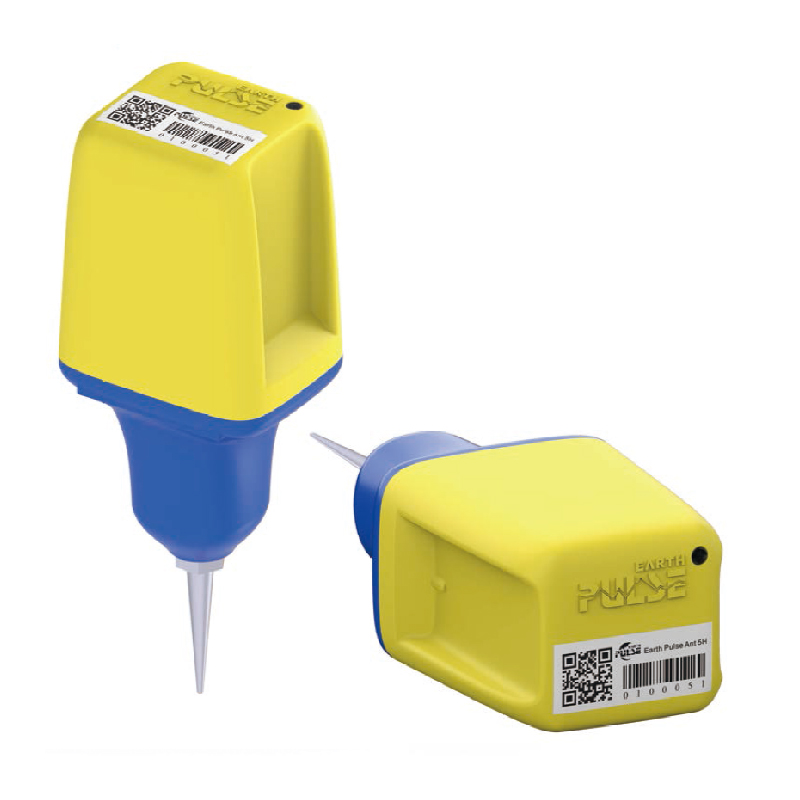

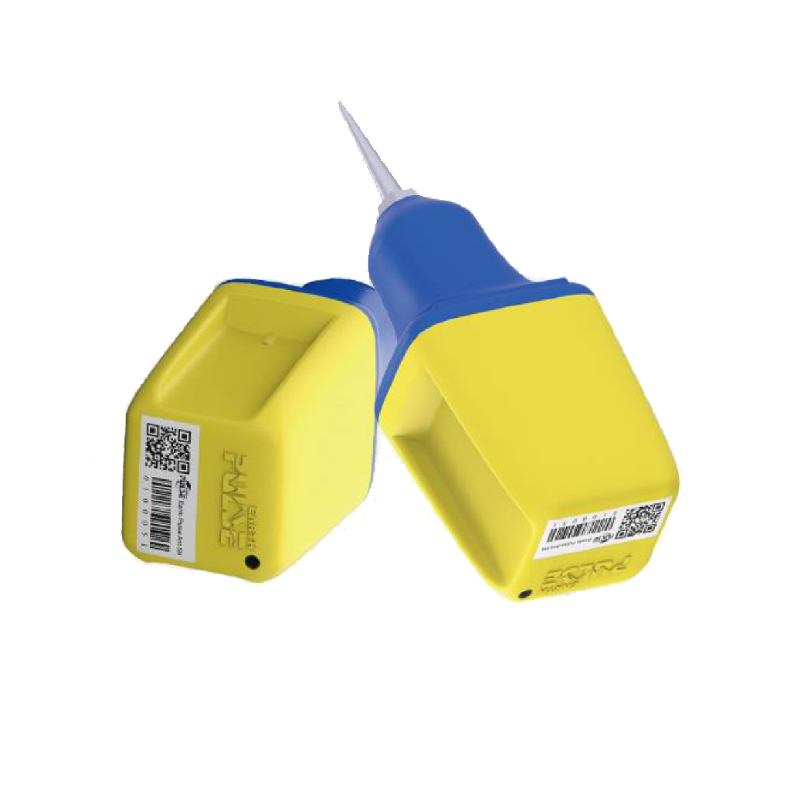

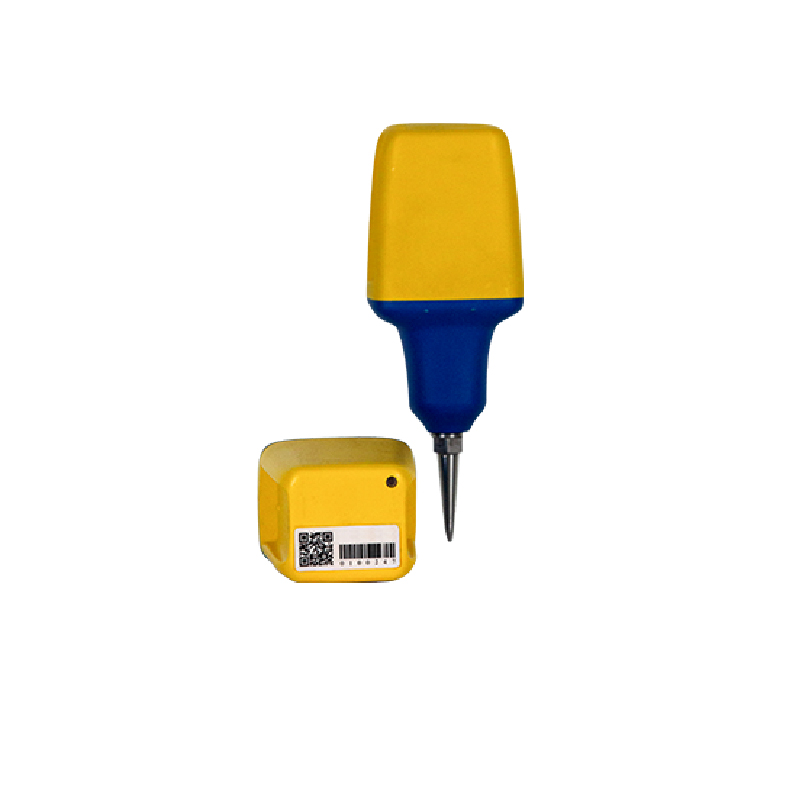

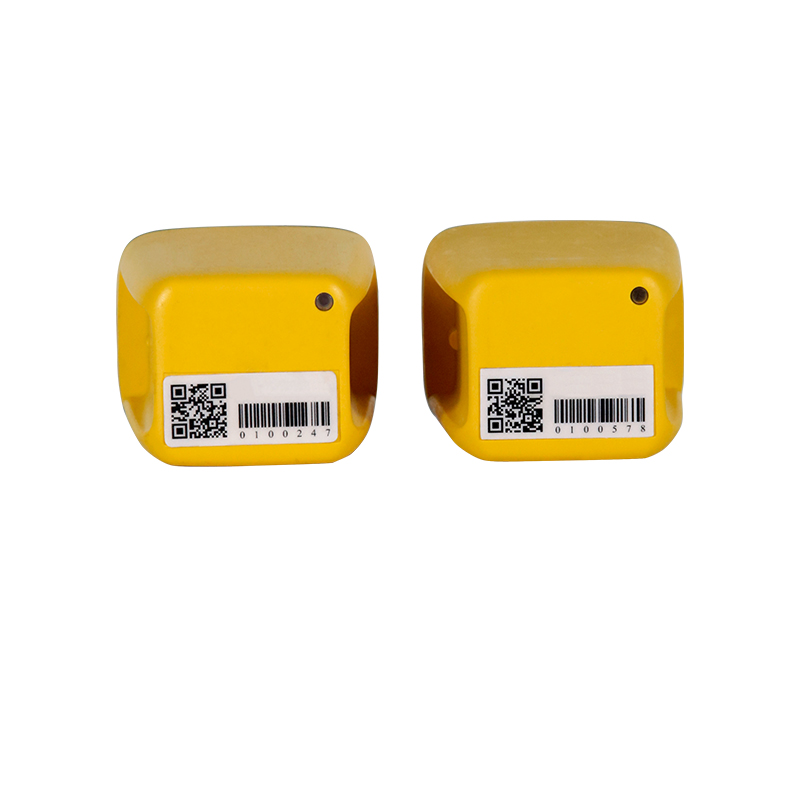

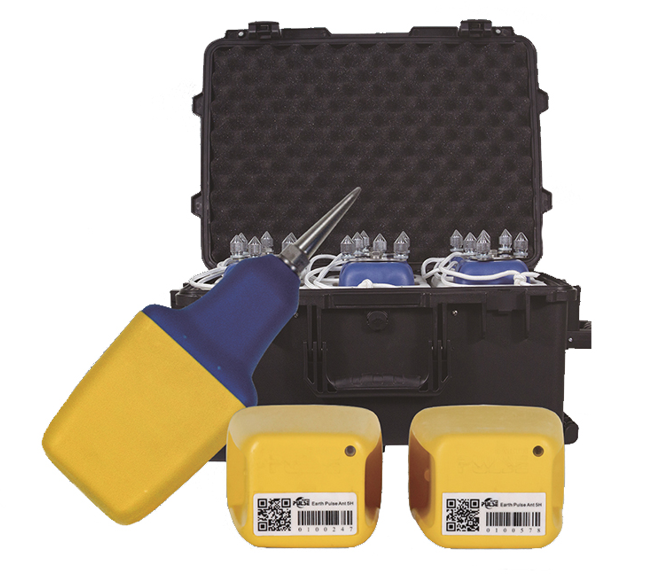

GE-ANT-1C Seismic nodal instrument
Abstract
GE-ANT-1C is a lightweight, convenient and stable seismic nodal instrument. Aiming simpli-fy seismic exploration, improving construction efficiency and saving project cost. The prod-uct adopts advanced GPS / BDS synchronization algorithm, ultra-low power circuit design and wireless data download / charging technology. High product integration, long continu-ous working time, IP68 waterproof, great potential for intelligent / automatic construction, and adapt to various complex surfaces and rugged environments.
Applications
● Seismic regional safety evaluation
● Shallow geological survey
● Urban underground space exploration
● Geothermal exploration
● Coal goaf exploration
● Mineral/ natural gas exploration

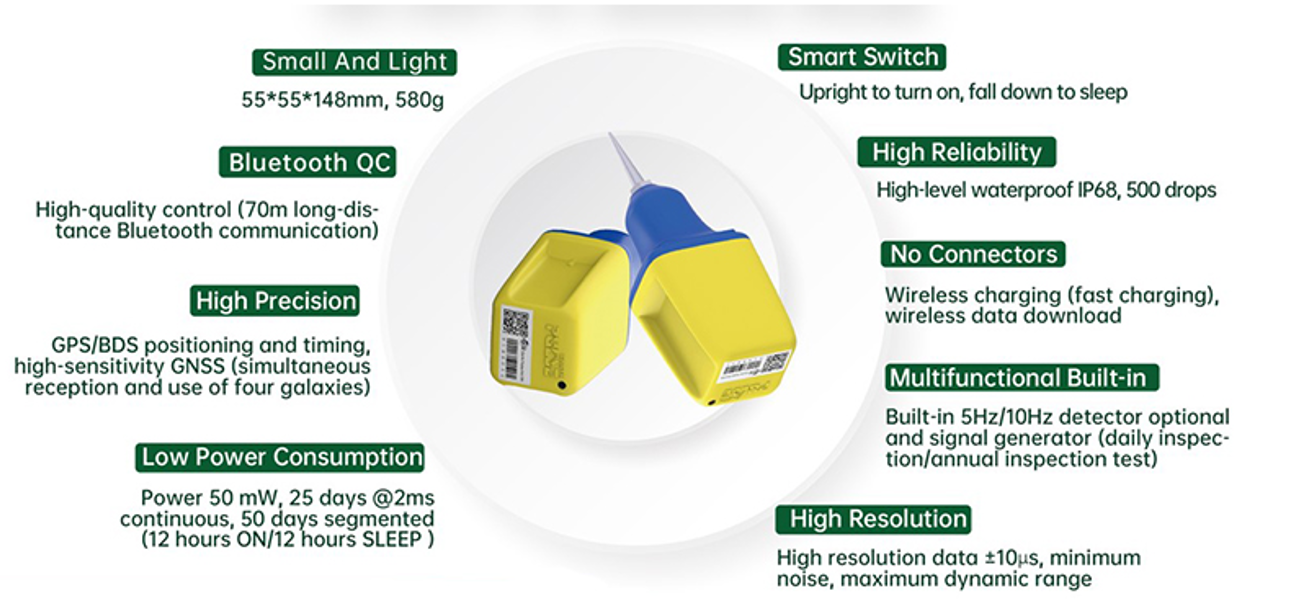

Features
Specifications
（一）Physical Parameter
Parameter | Index |
Weight | 580g |
Size | 55mm x 55mm x 148mm（Without Spike) |
Working Temperature | -40℃ to +70℃ |
Waterproof | IP68 |
Working Time @ 25 ℃ | 25 days @2ms |
Charging Time | 3.5 hours |
（二）Instrument Parameter
Parameter | Index |
Number of Channels | 1 |
Sampling Rate | 0.25ms,0.5ms,1ms,2ms,4ms |
Preamplififier Gain | 0-24dB(6dB steps) |
Low Cut Filter | 1Hz,DC removed or Disable |
Anti Aliasing Filter | 206.5Hz@2ms(82.6% Nyquist frequency) optional maximum phase or minimum phase |
0dB @ Max Input | 2.5VpeaK |
Equivalent Input Noise @ 12dB | 0.5uV@0.25ms / 0.2uV@2ms / 0.14uV@4ms |
Instantaneous Dynamic Range @ 12dB | 118.9dB@0.25ms / 126.8dB@2ms / 130dB @4ms |
Total Dynamic Range | 150dB |
Time Accuracy | ±10μs |
Internal Storage | Extended from 8GB to 32GB |
Built in GPS | GPS, BDS, GLONASS,GNSS(Concurrent reception) are used for timing and positioning |
（三）Geophone Parameter
Parameter | Index | Index |
Optional Geophone | 5Hz | 10Hz |
Natural Frequency | 5±7.5% | 10±3.5% |
DC Resistance | 1850±5% | 1800±3.5％ |
Sensitivity | 80±5％ | 85.8±3.5％ |
Damping | 0.6±7.5％ | 0.48~0.54 |
Distortion | ≦0.1% | ≦0.1% |
Aliasing | ≧170 | ≧240 |
Software System

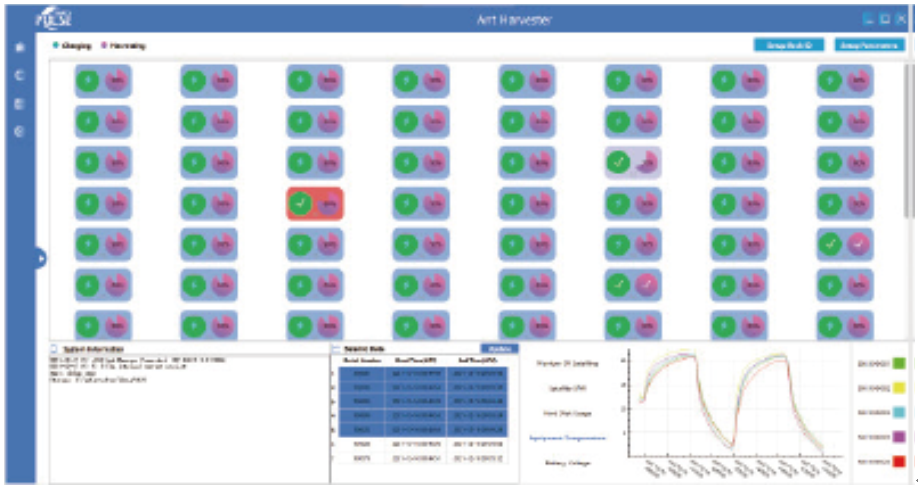

（一）Data-Harvest & Charging Center

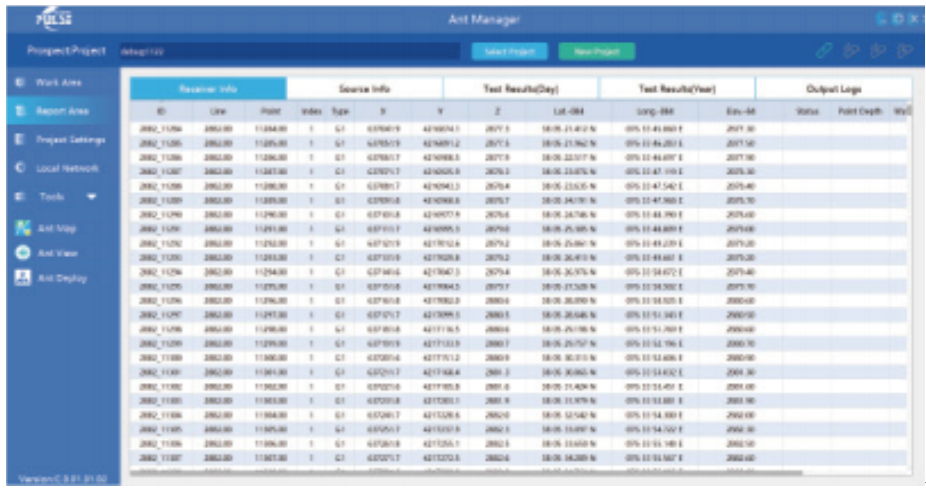

（二）Ant-Data Manager

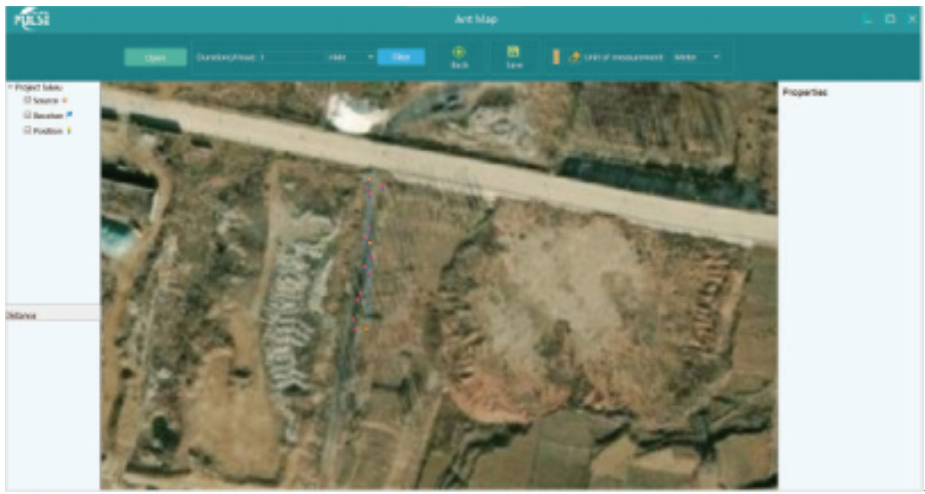

（三）Ant Map

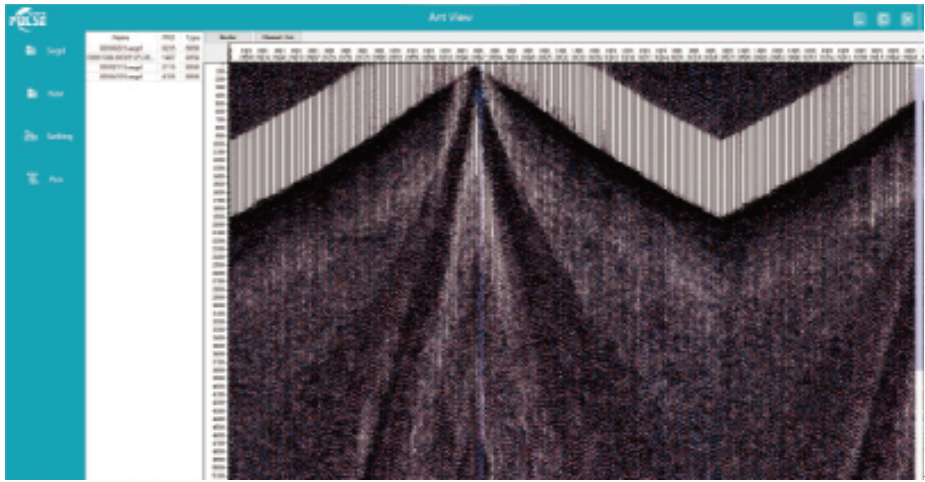

（四）Ant View

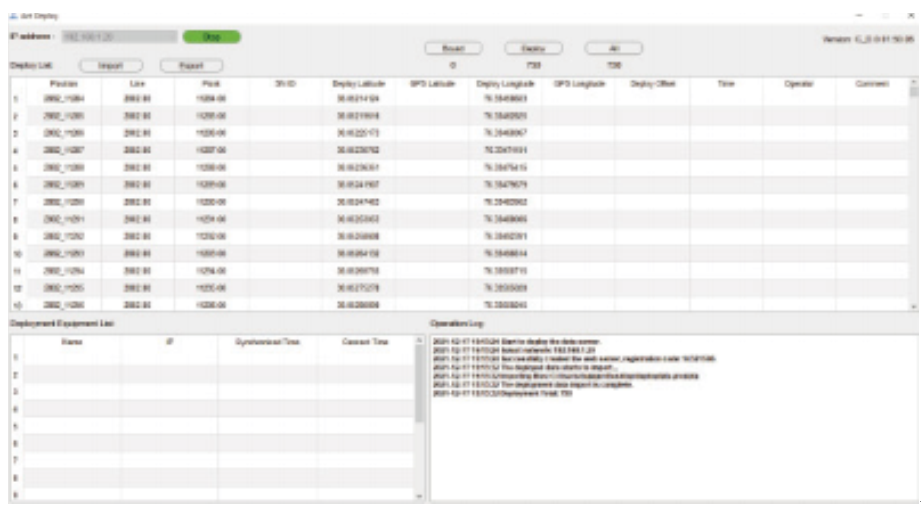

（五）Ant Deploy

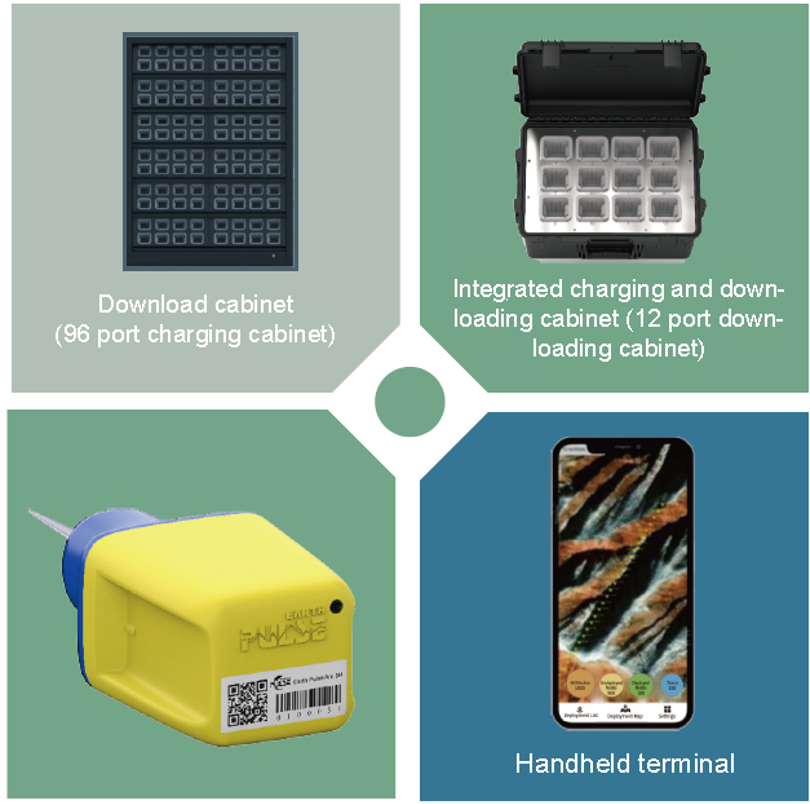

Auxiliary Equipment
